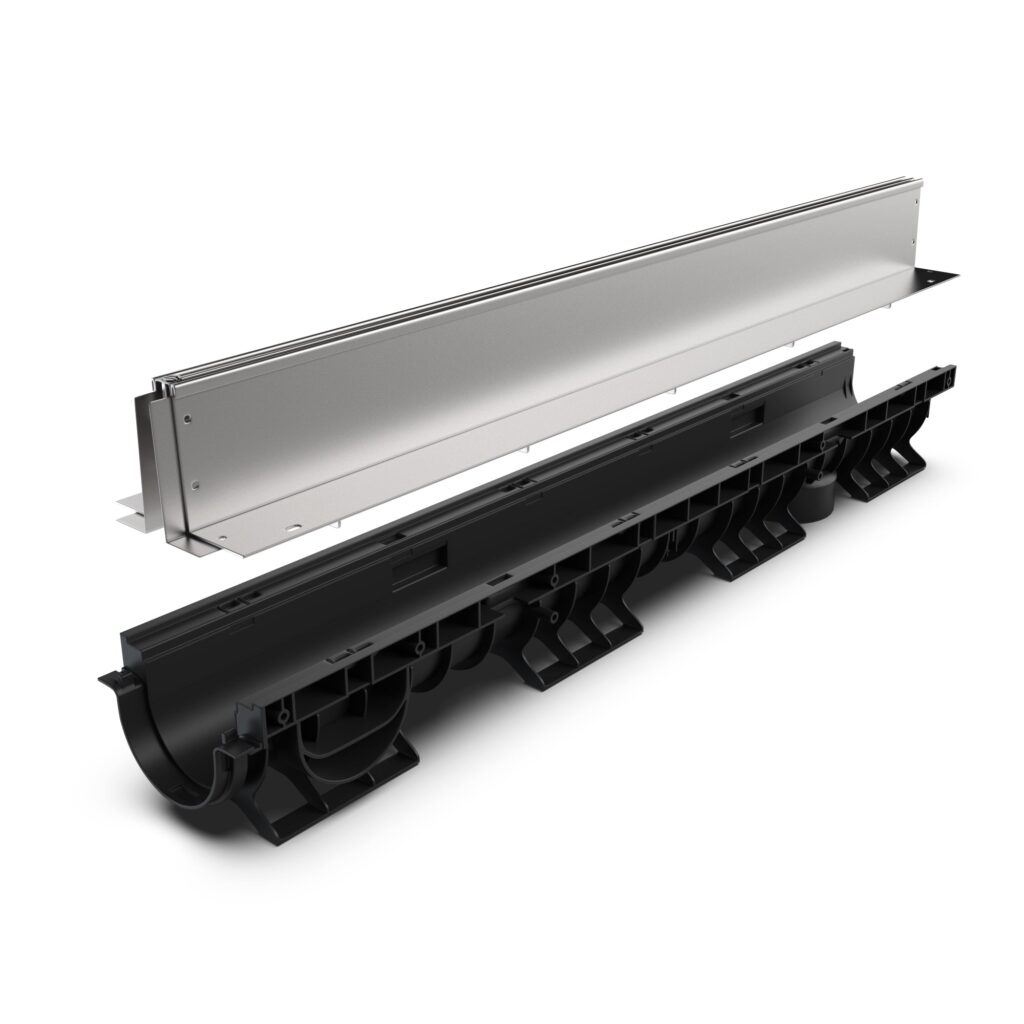

ADA Slot Drain System
This system is designed and engineered to perfectly provide a flush and low profile application. Durable and corrosion resistant material made system, making it perfect for any residential or commercial application. A surface level drain system for pool side, patios, porches, driveways, and more.
Product Specs at a Glance
- 304-Grade Stainless Steel – Provides durability and corrosion resistance.
- ADA/Heel Proof Compliant – Ensures safety for both residential and commercial applications.
- A-D Load Class Rated – Can withstand up to 89,000 LBS per EN 1433 (400KN).
- Compatible with any 4” Base Plastic Channel Drain
- Material: 304-Grade Stainless Steel Grate
- Channel Length: 3.3 FT (39 Inches)
- Slot Width: ¼” each of the Internal opening & 5/8” External
- Slot Grate Height: 3 ⅞” Inches
- Load Class: A-D Load Classification (per EN 1433)
| Downloads | DWG | BIM | |
|---|---|---|---|
| Grating Specification Sheet |
|
|
|
| Pre-slope Specification Sheet |
|
|
|
| 2" Channel Neutral |
|
|
|
| 3" Channel Neutral |
|
|
|
| 4" Channel Neutral |
|
|
|
| 6" Channel Neutral |
|
|
|
| 8" Channel Neutral |
|
|
|
| Supplemental Installation Guide |
|
- Patios
- Pool
- Porches
- Walkways
- Driveways
